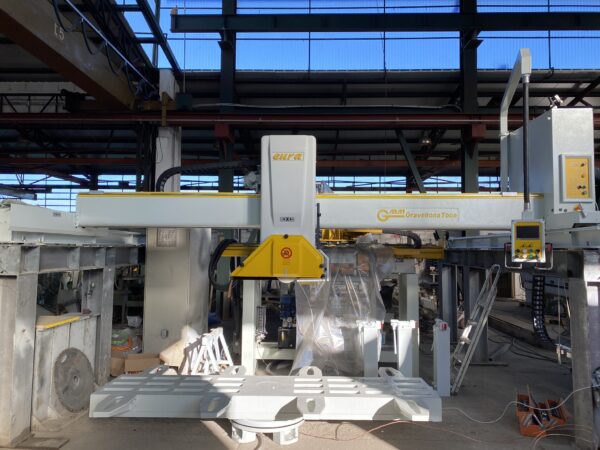

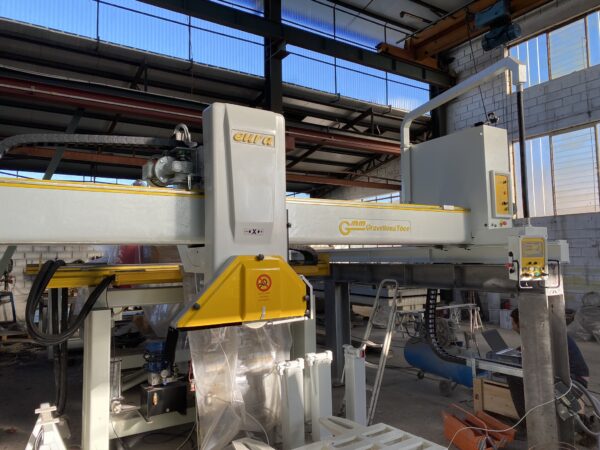

Ref. FP3911 Automatic Bridge Saw GMM – EURA TS

Brand: GMM
Model: EURA TS
Year: 2008

FULLY RECONDITIONED

Automatic bridge sawing & shaping machine
Cutting stroke of the blade 3500 mm
Max vertical travel of the blade 320 mm
Max bridge translation 3500 mm
Max blade diameter 625 mm
Max cutting depth with max blade 205 mm
Table dimension with 8 out riggers 1500 x 3000 mm
Blade motor 20/15 Hp / kW
Blade speed at 50 Hz 1450 rpm
Variable cutting and return speeds 0÷18 m/min
Manual rotating table with locking in all positions
Program for automatic cuts
Total machine mass 3400 kg
Standard voltage/frequency 400/50 Volt/Hz
